APPLICATION

Wire Harnesses for Automotive Electronics

Wire harness review for automotive electronic devices: connector interfaces, routing, identification and customer-defined inspection requirements.

APPLICATION REVIEW

Start with the operating environment and interface.

For automotive electronics projects, the most useful first step is to define the product interface, operating conditions, installation constraints, and required documentation.

Discuss your application

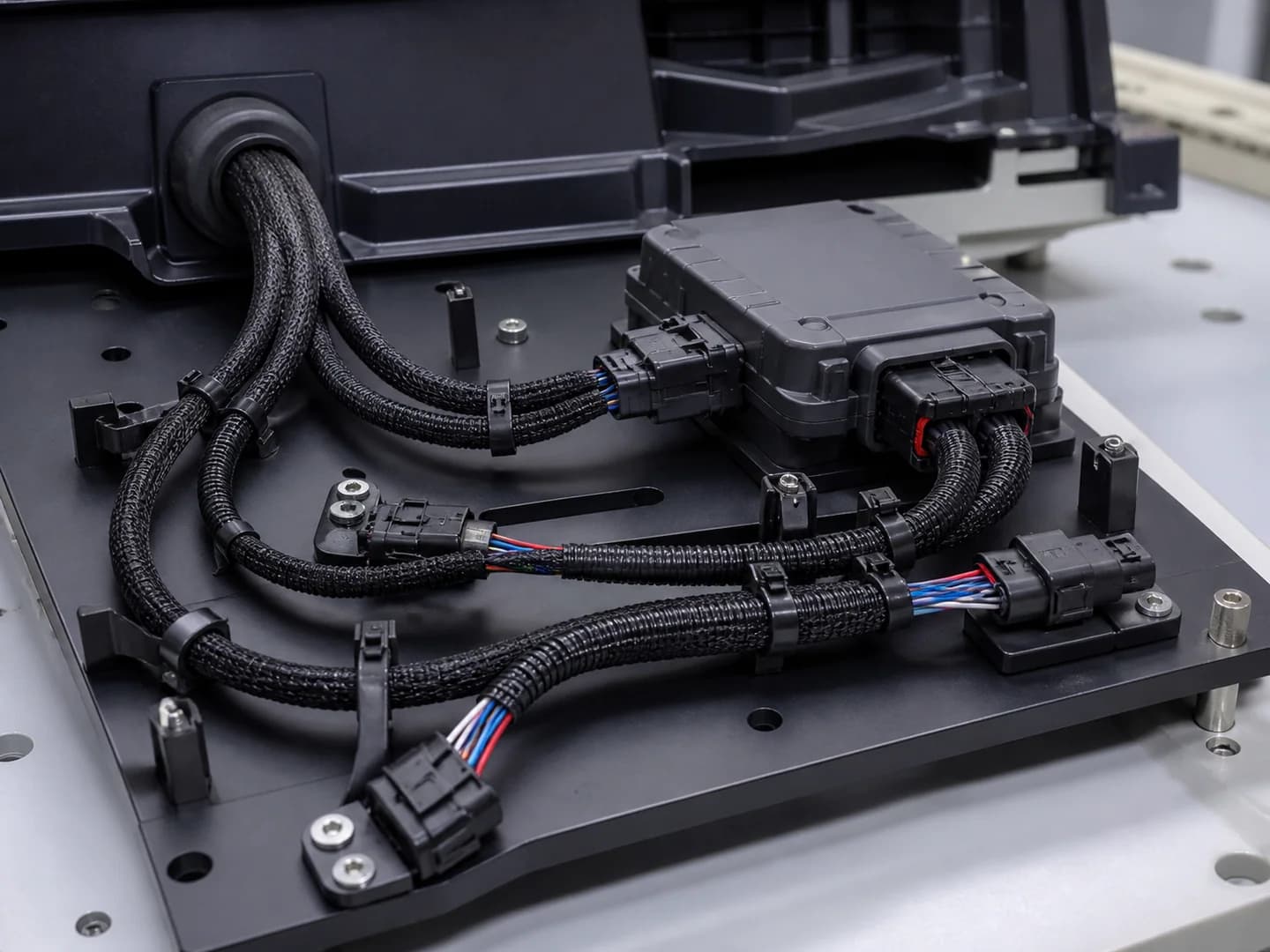

representative automotive electronics test fixture with a protected wire harness

KEY QUESTIONS

+ Routing and connector interfaces+ Power and signal requirements+ Identification and traceability+ Application-specific validation

Application wiring and sample review

For a device-level harness, identify the electronic unit, mating connectors, branch lengths and mounting points. Record connector locks, circuit identification and environmental exposure. Sample fit and production electrical checks need separate acceptance criteria.

Automotive Wire HarnessRead the interface and RFQ review guide

RELEVANT PRODUCT FAMILIES

AUTOMOTIVE ELECTRONICSAutomotive Wire HarnessApplication-specific wire harness development for automotive electronics.SEALED INTERCONNECTWaterproof Cable AssemblyDefine the connector, rear cable exit and installed sealing boundary together. Share the mating state, jacket, length and exposure for a project-specific review.CABLE ASSEMBLYCable AssembliesCustom cable assemblies for equipment and electronic systems.CONNECTOR INTEGRATIONConnector AssembliesBoard-to-wire leads and wire-to-wire assemblies built around your specified interface. Send the mating connector, pinout, wire length and quantities for review.

START WITH THE REQUIREMENT

Need an application-specific assembly?

Share the product context and we will structure the next technical questions.
