SPECIFIC PRODUCT SOLUTION
Automotive connector assembly built from your drawing and BOM
Customer-specified connector-and-wire assemblies for automotive electronics and vehicle-related OEM equipment.
PRODUCT OVERVIEW

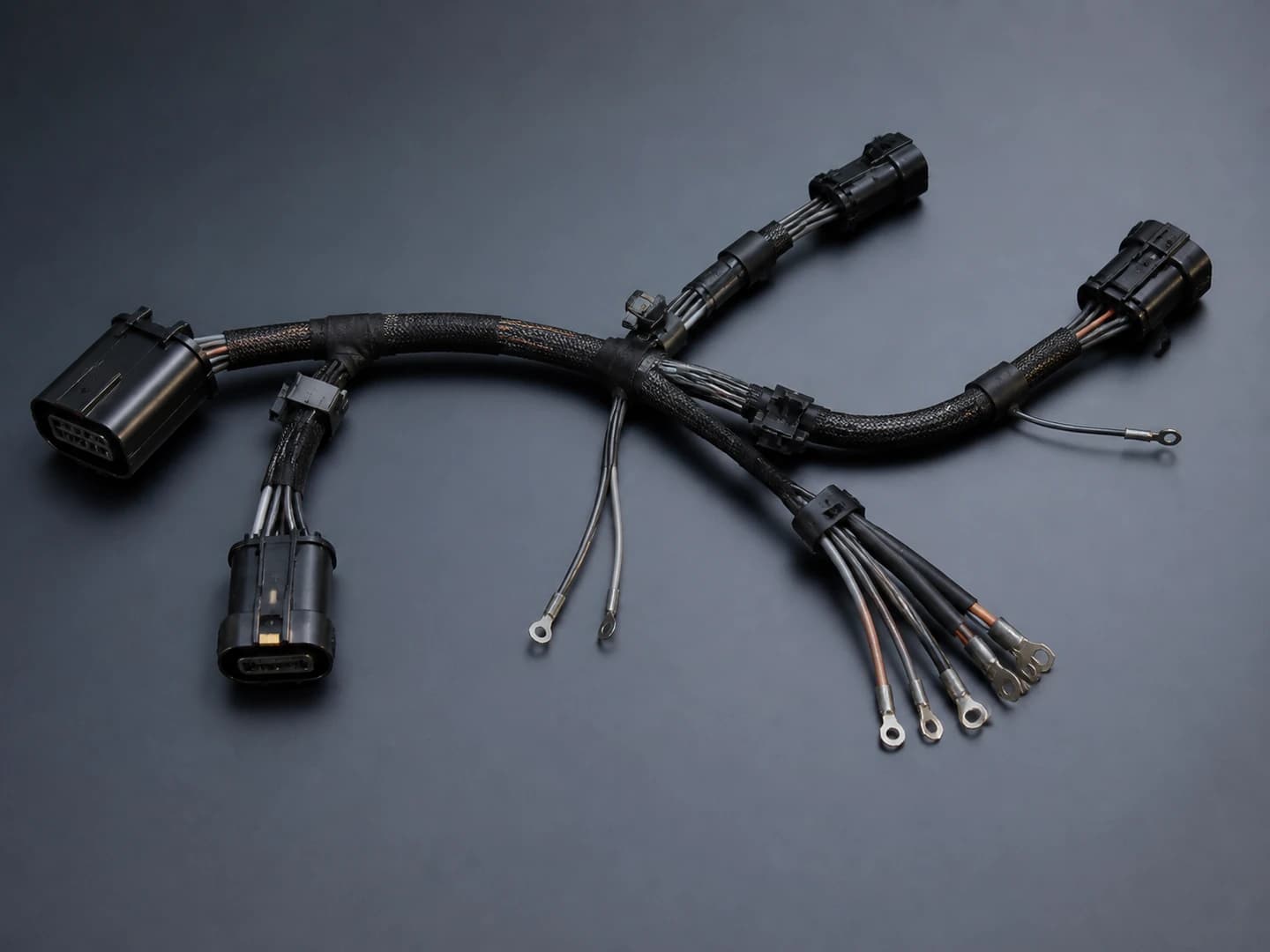

A connector-and-wire assembly reviewed from the released automotive interface.
Yuefu manufactures connector-and-wire assemblies to the customer drawing, BOM, and interface requirement. Scope can include specified housing, terminal, wire, seals or retention features, identification, and project-confirmed inspection requirements. The published scope is assembly work, not standalone connector distribution. Vehicle platform, application environment, validation evidence, and any compliance package are confirmed during engineering review; no vehicle approval or certification is implied.
PRODUCT CONFIGURATION
Interfaces, construction and specifications
Match the assembly type first, then confirm project values. These configuration details guide selection; the approved drawing defines final materials, dimensions and ratings.
- Interfaces & terminations
- Customer-approved automotive housing, contact and mating part numbers.
- Wiring & dimensions
- Occupied cavities, wire order, lead lengths and opposite-end preparation.
- Assembly construction
- Connector leads with specified locks and, where required, seals.
- Conductor & materials
- Specify conductor size in AWG or mm², conductor construction, insulation and jacket part numbers. Selection must match the terminals; see the material guide below.
- Temperature & validation
- State operating temperature and fixed or moving installation. Assembly ratings, test conditions and records depend on the selected materials and construction.
Additional product technical notes
- Connector and housing
- Customer-specified part number, keying, position count, mating interface, and approved source rule confirmed during engineering review.
- Terminal and wire
- Customer drawing or BOM defines the terminal, wire, gauge, insulation, identification, and termination requirements.
- Routing and retention
- Project-specific; installation route, clips, strain relief, movement, abrasion, and vibration context confirmed from the application.
- Validation and documentation
- Customer-required validation, inspection, traceability, or submission scope confirmed before quotation; no blanket certification is claimed.
Use and assembly construction
- Use
- A specific connector interface on vehicle electronic equipment.
- Construction
- Connector housing, contacts and wires; seals only where specified.
- Selection focus
- Approved housing/contact numbers and the opposite wire-end preparation.
Start with the information you already have
With a drawing, include its revision, interfaces, pinout and quantity tiers. With photos or a sample, add interface dimensions, wiring information and required tests. Mark undecided items as open.
APPLICATIONS
FOR A FASTER QUOTE, PLEASE PROVIDE
- Controlled drawing, BOM, wiring list, 3D reference, and revision or change notice
- Housing, connector, terminal, keying, seal, mating counterpart, and approved source requirements
- Wire specification, pinout, current, temperature, routing, clips, protection, and vibration context
- Part identification, labeling, packaging, sample quantity, and production quantity
- Customer-defined validation, inspection, traceability, or submission scope when applicable
FAQ
Can you supply automotive connectors alone?
The published scope is a finished connector-and-wire assembly built around customer-specified components. Standalone connector supply or distribution is not represented by this page.
Do you have vehicle or OEM approvals?
No blanket vehicle approval, OEM recognition, IATF status, or certification is implied. Applicable customer requirements and supporting documents must be provided and confirmed during engineering review.
What should I send for an automotive connector assembly quotation?
Send the latest drawing or BOM revision, housing and terminal part numbers, wire specification, pinout, installation context, quantity, labeling, and the validation or inspection scope you require.
REQUEST A QUOTE
Send the requirement for Automotive Connector Assembly
Share the drawing, part number, quantity, or application. The engineering team will review the brief and reply with the next questions.
