01Wire Harness Drawing Review
Translate drawings, interface requirements, and application constraints into a clear manufacturing brief. Missing information is identified before quotation.
Discuss process and inspection requirementsCAPABILITIES
Wire Harness & Cable Assembly Manufacturing Capabilities
Wire harness manufacturing, prototype planning and cable assembly testing review. Define drawings, sample approval, production controls and inspection records.
01
02Cable Assembly Prototype Planning
Coordinate prototype requirements around drawings, sample quantity, materials, testing, and approval milestones.
Discuss process and inspection requirements
03Harness and Assembly Production Controls
Support repeatable production with customer-controlled specifications, identification, packaging, and inspection requirements.
Discuss process and inspection requirements
04Cable Assembly Testing Scope
Testing scope is defined from the product requirement. Test methods, records, and applicable standards are agreed before production release.
Discuss process and inspection requirementsPROJECT FLOW
Requirement -> Review -> Prototype -> Production
Every project has its own approval gates. The final sequence, timing, and records are confirmed from the customer requirement.
INSPECTION & QUALITY RECORDS
From drawing requirements to inspection records
Define the dimensions, wiring and terminations to be checked, then agree the inspection scope for samples and production. Include the controlled drawing, wiring table, sampling requirements and acceptance criteria.
The project inspection plan defines test methods, suitable equipment and calibration requirements, sampling and acceptance criteria. Agree the inspection scope before sample approval.

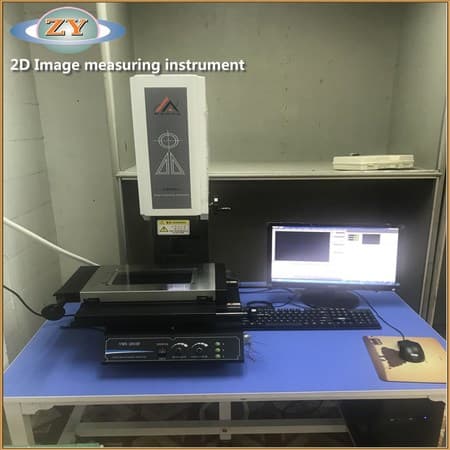

Dimensional and drawing checks
Provide critical dimensions, tolerances, datums and the drawing revision. Agree sample and production checks, sampling and records separately.
Wiring and electrical checks
Supply a pin-to-pin wiring table and identify the circuits, electrical checks and acceptance criteria. Connector appearance does not define the pinout.

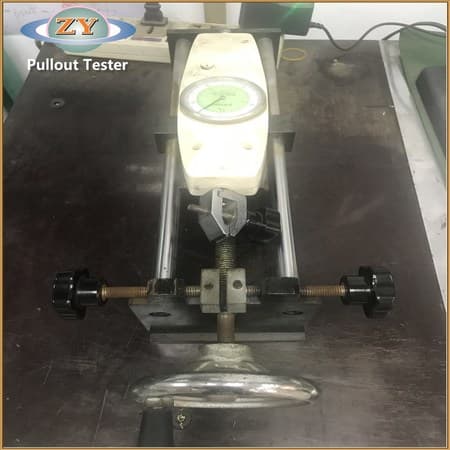

Termination pull-force review
Identify the termination, wire and terminal combination, together with the test method and acceptance criteria—not simply a request for a pull test.

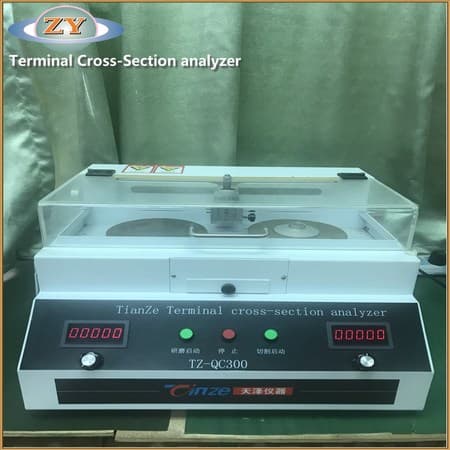

Terminal cross-section review
Identify terminations requiring cross-section review and agree sample quantities, inspection criteria and record format. Applicability is assembly-specific.

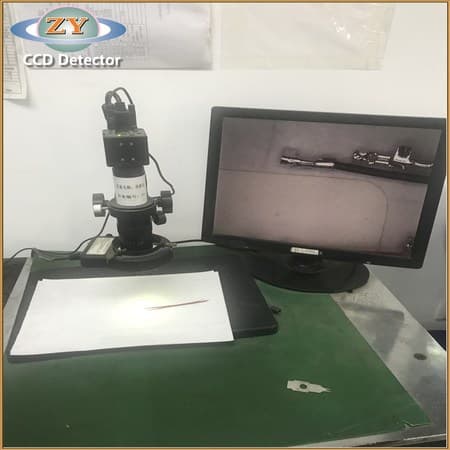

Cavity and assembly checks
Specify occupied cavities, connector orientation, identification and visual acceptance criteria so assembly differences are not missed.

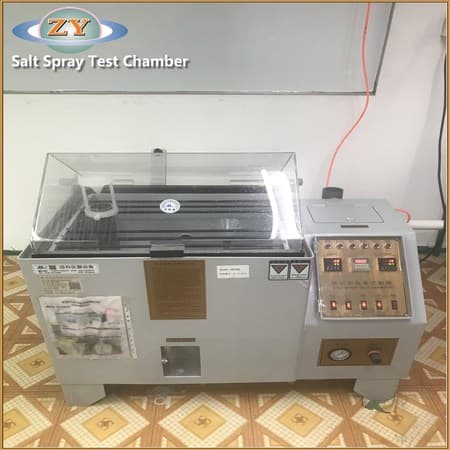

Corrosion-test requirements
For corrosion testing, specify the method, duration, test article and acceptance criteria, together with the required test records.
START WITH THE REQUIREMENT
Need help turning a drawing into an RFQ?
Share the current revision and we will identify the information required for review.
