Internal Wire Harnesses for Electronic Devices

Compact internal wire harness and connector lead review for electronic devices. Specify mating interfaces, wiring, length and assembly clearance.

APPLICATION REVIEW

Start with the operating environment and interface.

For consumer electronics projects, the most useful first step is to define the product interface, operating conditions, installation constraints, and required documentation.

Discuss your application

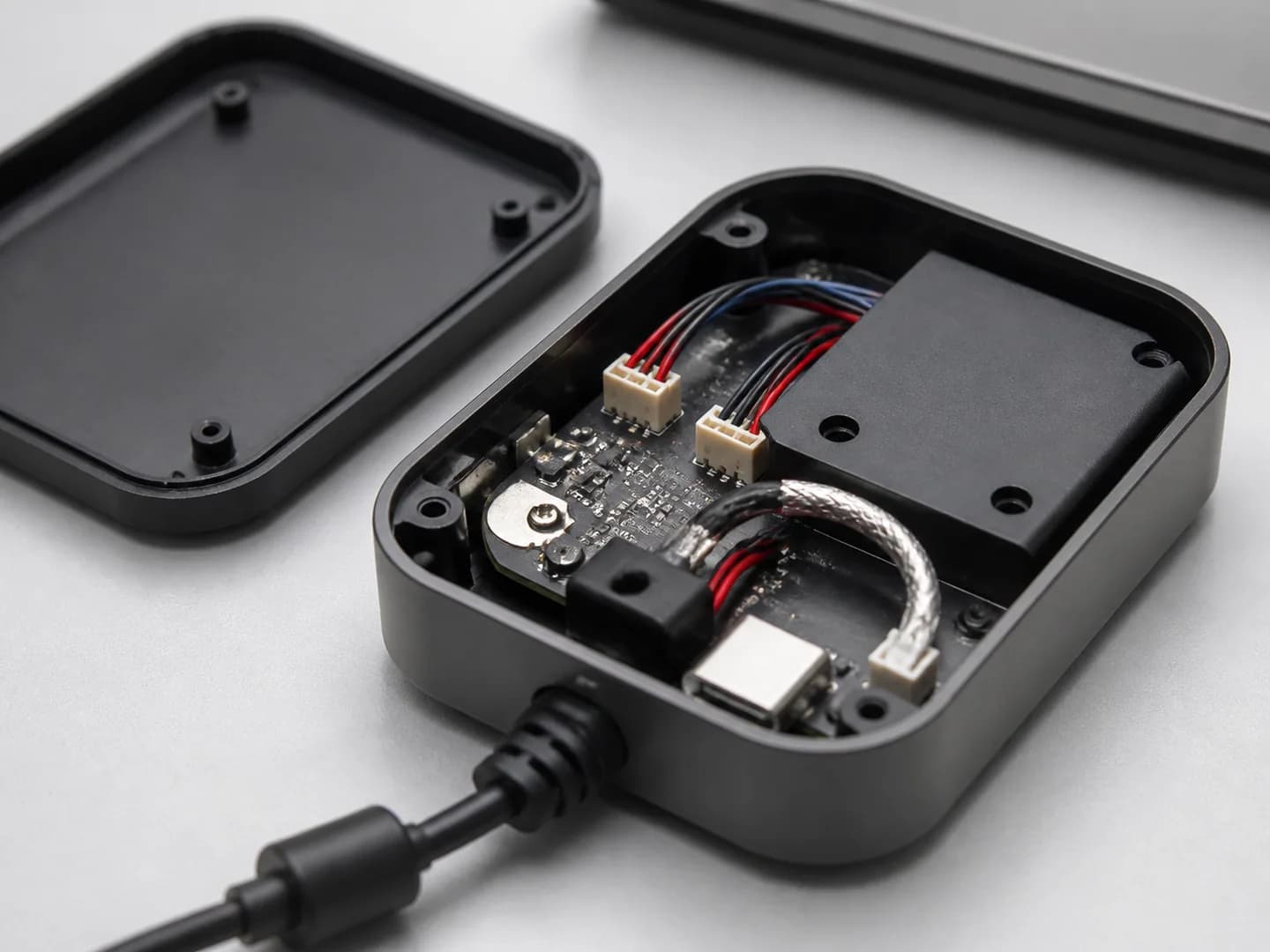

representative consumer electronics enclosure with compact wire connectors

KEY QUESTIONS

+ Space-constrained interfaces+ Connector family selection+ Assembly consistency+ Packaging and identification

Application wiring and sample review

Provide the board header or mating interface and the clearance around it. Specify occupied cavities, wire colours, connector orientation and finished length from a stated reference. Review installation and end preparation with a sample before freezing the production drawing.

Connector AssembliesRead the interface and RFQ review guide

RELEVANT PRODUCT FAMILIES

BOARD-TO-WIRE ASSEMBLYBoard-to-Wire Lead AssembliesShort leads between a circuit board and the product wiring.BOARD-TO-WIRE ASSEMBLYInternal PCB Wire AssembliesInternal PCB wiring where routing space and end preparation need to be defined together.BOARD-TO-WIRE ASSEMBLYCompact Signal Wire AssembliesSignal leads for space-constrained electronic equipment.CONNECTOR INTEGRATIONConnector AssembliesBoard-to-wire leads and wire-to-wire assemblies built around your specified interface. Send the mating connector, pinout, wire length and quantities for review.

START WITH THE REQUIREMENT

Need an application-specific assembly?

Share the product context and we will structure the next technical questions.
