SPECIFIC PRODUCT SOLUTION

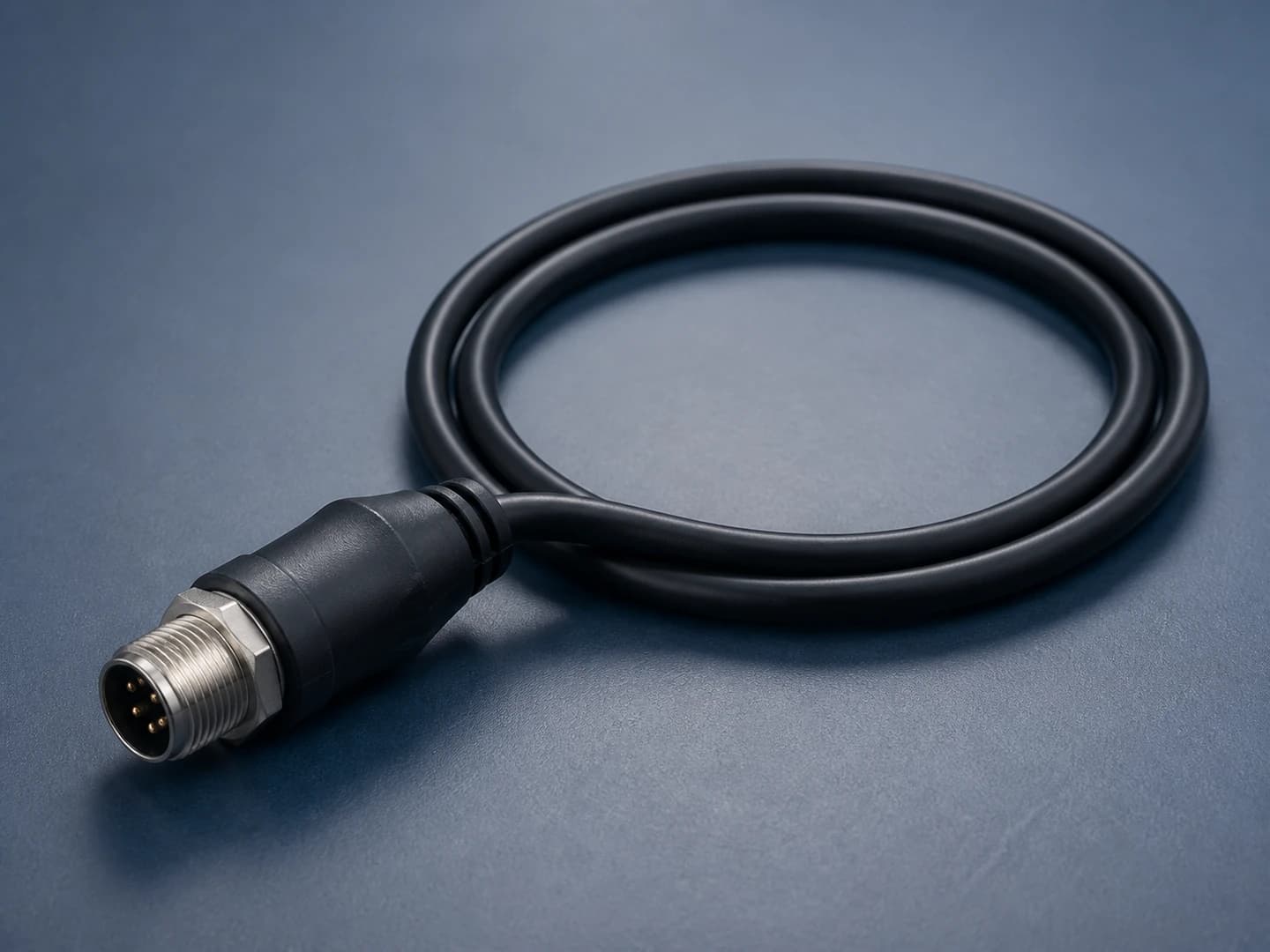

Custom M12 cable assembly for industrial automation and sensor systems
M12 cable assemblies for sensor and equipment connections, with customer-defined coding, pinout, cable length, shielding and exit direction.
PRODUCT OVERVIEW
A finished cable assembly built around the customer-specified M12 interface.
Yuefu manufactures the finished cable assembly around a customer-specified M12-format connector system: cable, termination, strain relief or sealing features, identification, and project-confirmed inspection scope. Yuefu does not sell or manufacture the M12 connector body as a standalone component. Send the connector part number, pinout, cable construction, length, application, and environmental requirements; compatibility, sealing target, and test scope are confirmed during engineering review.
PRODUCT CONFIGURATION
Interfaces, construction and specifications
Match the assembly type first, then confirm project values. These configuration details guide selection; the approved drawing defines final materials, dimensions and ratings.
- Interfaces & terminations
- M12 connector to a second connector or prepared wire ends; confirm coding and pin count.
- Wiring & dimensions
- Pin numbering and viewing direction, pinout, cable length and shield connection.
- Assembly construction
- Sensor or equipment cable with specified connector orientation and cable exit.
- Conductor & materials
- Specify conductor size in AWG or mm², conductor construction, insulation and jacket part numbers. Selection must match the terminals; see the material guide below.
- Temperature & validation
- State operating temperature and fixed or moving installation. Assembly ratings, test conditions and records depend on the selected materials and construction.
Additional product technical notes
- Connector system
- Customer-specified M12-format connector or approved alternative; coding, pin count, mating interface, and compatibility confirmed during engineering review.
- Cable construction
- Project-specific; confirmed from current, signal, flexing, shielding, and environmental requirements.
- Sealing and strain relief
- Project-specific; required sealing target, cable exit, and validation method confirmed from the application.
- Termination and testing
- Project-specific; termination method, inspection criteria, and any electrical or environmental test scope confirmed from the drawing.
- Coding and pin count
- Name the coding and pin count in the RFQ. A-coded 4-pin and 5-pin sensor leads are a common simple assembly starting point. Other coding and pin counts are reviewed from the customer part number; no catalog SKU or blanket coding support is implied.
- Finished length
- State the finished length, measurement reference, and tolerance. Standard catalog lengths are not assumed.
Use and assembly construction
- Use
- Specified M12 sensor and industrial equipment interfaces.
- Construction
- M12 connector with cable and a second connector or prepared wire ends.
- Selection focus
- Coding, pin count, viewing direction, shielding and cable exit.
Start with the information you already have
With a drawing, include its revision, interfaces, pinout and quantity tiers. With photos or a sample, add interface dimensions, wiring information and required tests. Mark undecided items as open.
APPLICATIONS
FOR A FASTER QUOTE, PLEASE PROVIDE
- M12-format connector part number, coding, pin count, mating interface, and approved alternative rule
- Pinout, cable construction, conductor or shield details, jacket, and finished length
- Cable exit, strain relief or sealing intent, installation conditions, and required validation method
- Application, temperature, movement, moisture, chemicals, vibration, and routing context
- Prototype and production quantities, labeling, packaging, and any inspection or test records
FAQ
Do you manufacture the M12 connector itself?
No. Yuefu manufactures the finished cable assembly around the customer-specified connector system; standalone connector manufacturing or distribution is not the published scope.
Can you assemble any M12 coding variant?
A customer-specified connector part number or approved alternative can be reviewed. Coding, pin count, mating interface, and assembly feasibility are confirmed during engineering review; no blanket coding support is assumed.
What should I send for an M12 cable assembly quotation?
Send the connector part number, pinout, cable construction or target jacket, length, quantity, application, and environmental requirements. Open items should be marked for review.
REQUEST A QUOTE
Send the requirement for M12 Cable Assembly
Share the drawing, part number, quantity, or application. The engineering team will review the brief and reply with the next questions.
